Esteem 11 Integrated Total Solution Software
(Structural Software Tool)


Integrated modeling, design, analysis, detailing and costing solution for your reinforced concrete and steel structures

Input your structural model with a simple GUI, then run your project with a few clicks and out comes the following:


  • Automatic structural behaviour model with result diagrams using Automatic Meshing and Finite Element Analysis
  • Automatic Detailing and Design Report
  • Automatic Quantity Take-off Report





Esteem 11 (P6) Integrated Total Solution

For buildings up to 6 floor plans (5 storeys)


 Reinforced concrete structures

 Steel member structures.

BS, CP and EC2 Code of Practices

 Seismic, Stage Construction, P-Delta Analysis
 Design and Detailing

 Quantity Take-off
 Esteem-Revit Import and Export Integration
 IFC2x3 Export
Compatible to install on  Windows 10, Windows 11 64 bit OS

 8 x 5 Support (Mon - Fri, 8:30 am - 5:30 pm UTC+8)

Email, Whatsapp Support

Remote Support





Esteem 11 (P50) Integrated Total Solution

For buildings up to 50 floor plans
(49 storeys)

 Reinforced concrete structures

Steel member structures.

BS, CP and EC2 Code of Practices

 Seismic, Stage Construction, P-Delta Analysis

 Design and Detailing

 Quantity Take-off
 Esteem-Revit Import and Export Integration
 IFC2x3 Export
Compatible to install on  Windows 10, Windows 11 64 bit OS

 8 x 5 Support (Mon - Fri, 8:30 am - 5:30 pm UTC+8)

Email, Whatsapp Support

 Remote Support


Esteem 11 (PU) Integrated Total Solution

Has no limit on the number of floor plans
(Unlimited storeys)

 Reinforced concrete structures

 Steel member structures.

BS, CP and EC2 Code of Practices

 Seismic, Stage Construction, P-Delta Analysis
 Design and Detailing

 Quantity Take-off
 Esteem-Revit Import and Export Integration
 IFC2x3 Export
Compatible to install on  Windows 10, Windows 11 64 bit OS

 8 x 5 Support (Mon - Fri, 8:30 am - 5:30 pm UTC+8)

 Email, Whatsapp Support
Remote Support





FEATURES

Advance Import

In the same screen, trace background drawing and automatically import elements from entities layer from a DWG file.

DWG supported: AutoCAD 2020-2025

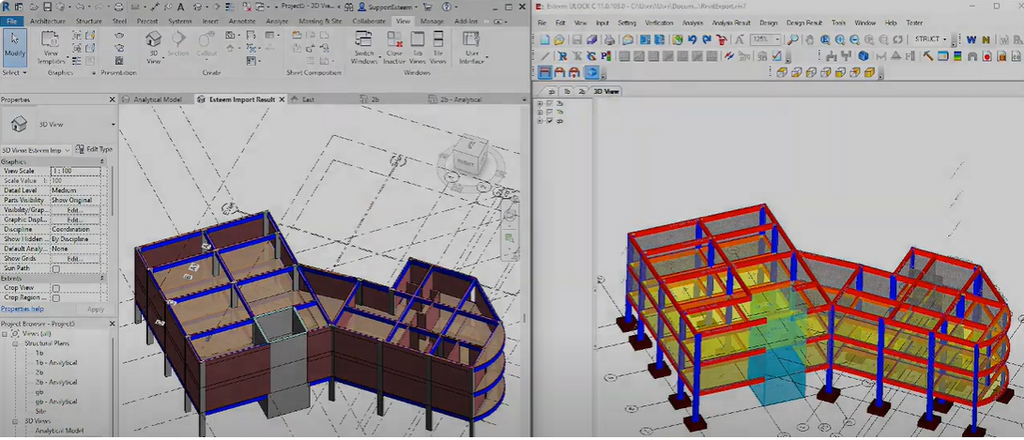

 BIM Interoperability

Esteem RC physical model Bi-Directional Link with Autodesk Revit 2023-2025.
Import and Export Models Between Esteem and Revit

IFC2x3 Export from Esteem Software



Narrow Slab Uplift Design

Pile offset from edge of core wall to increase the capacity of the foundation

Wall link detailing is added in schedule table and needed for every vertical rebar if it is >= 2%.

Steel member design check from Class 1 to Class 4 complying to EC3

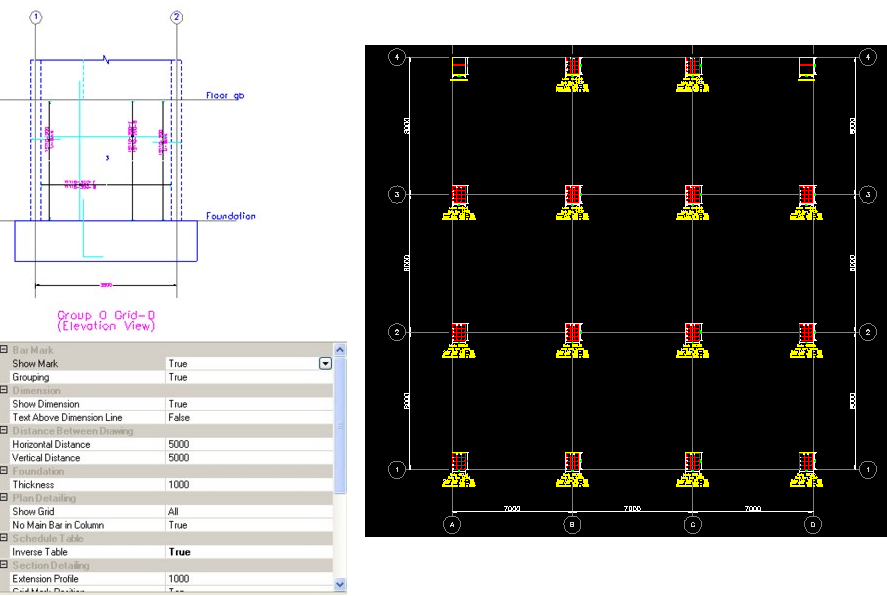

Design and detailing

  • Beam, Column, Wall, Slab
  • Pile, Pad, Raft
  • Flat Slab

Quantity Takeoff

  • Quantity take-off for Concrete & Foam-work, Steel Rebar, Mesh and Costing results for   Slab, Beam, Column, Wall and Footing
  • Export quantity take-off results to MS Word and Excel


Other Features

                                      • Simplified MRSA biaxial load combination feature which reduce seismic design to only 8 biaxial envelope combinations.
                                      • FRP Reinforced Concrete Slab
                                      • Auto fix Beam End Release on RC Wall
                                      • More economical slab design based on band-width contour.
                                      • Slab displacement contour based on non-reduced 2D sub-frame stiffness.
                                      • Just-in time analysis to quickly detecting free nodes in the 3D meshing as well as identifying any issues such as unstability in the 3D analysis
                                      • Forward compatible project files. Allow project files created in Esteem 11 and future releases to be used in previous Esteem versions (only applicable for Esteem 11 and future releases). E.g. project files created in Esteem 11.0.41.0 can be used in Esteem 11.0.18.0.
                                      • Add or merge regions, grids, beams, columns, rc walls, brickwalls, any loadings from another plan to existing plan
                                      • Merge multiple sub slabs into a single slab with single command

FAQ

BS8110, CP65 and EC2 code of practices.

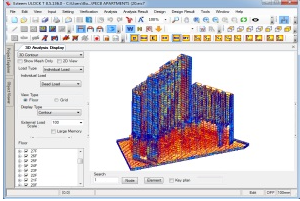

The software meshing is done using the Finite Element Analysis Automatic Adaptive Mesh Generation From Input Data.

The structural objects of slabs, beams, columns and walls are automatically meshed into Finite Elements with node-to-node and element-to-element mesh compatibility. The relations between objects are verified by built-in validation checks of structural integrity. The accuracy of the structural mesh is verified by built-in check for free nodes and disconnected objects.

The structural analysis is done using Finite Elements (FE). The FE analysis output results will self-validate the accuracy of FE mesh by comparing the loading of objects from input with corresponding reactions in output. It also auto-detect any locations of structural stability and excessive displacements.

Pad, Pile, and Raft Foundations.

Reinforced Concrete, Steel Member

We support Revit 2025/2024/2023 model import into Esteem and Esteem model export to Revit 2025/2024/2023.
We also support Esteem model export to IFC2x3 and 3D DXF

System Requirements Additional Notes:
 Operating System

Windows 10 (64-bit only)

Windows 11 (64-bit only)

*Windows 11 (64-bit) has to be stable official release

(cannot be Windows 11 Insider Preview Build)

 Processor

Basic: Intel CoreTM i5 or equivalent 2.5 GHz processor

Recommended: Intel CoreTM i7 or equivalent 3.2+ GHz  processor

 Only multi-core processing i.e. uses all the number of cores available to   improve its performance is implemented for:
 1) Computation engine in Esteem for the structural design stage
 2) Loading the Esteem project into the software
 Memory / RAM

Basic: 8GB

Recommended: 32 GB or more


 The memory size required is based on the size of the projects, large   projects like 3GB in size will have better performance when there is at   least 32 GB memory
Graphics /  Display card

Basic: NVIDIA GeForce 210 or equivalent 512 MB memory graphic card with Open GL  4  support


Recommended: NVIDIA GeForce GTX1050 or equivalent 2GB memory graphic card with Open GL 4 support


 Graphics cards may include integrated graphics card, however, for   smoother experience in viewing large models, it is recommended to get a   dedicated graphics card
Disk Space

Basic: 3 GB free disk space

Recommended: 10% to 20% Free Disk Space


 .Net   Framework .NET Framework Version 4.7 or later

You may refer to the Pricing Page

For users with existing perpetual license, we offer standalone/network dongle perpetual license option please contact us at sales@esteemsoft.com.my for a quotation.

For users with older software version license and want to trade in, please contact us at sales@esteemsoft.com.my for more information.

Yes, we offer 15 days free trial for you to determine if the software will fit your needs, please contact us at sales@esteemsoft.com.my.
