Esteem SteelCad Software

Overview


Connection Types

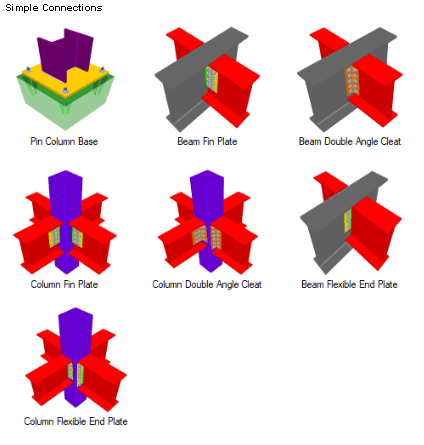

Simple Connections

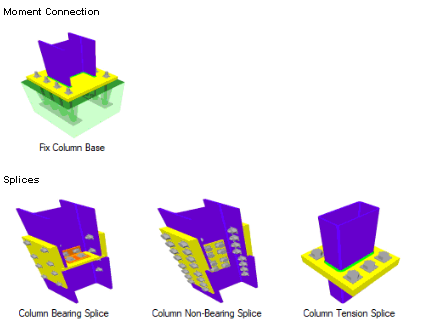

Moment Connection

Splices

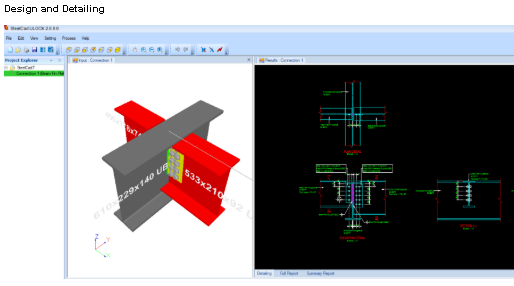

Design and Detailing

Detailing

Report

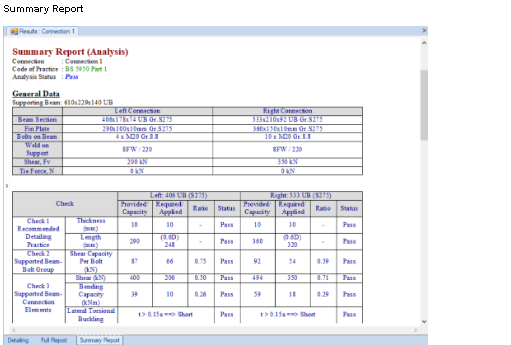

Summary Report

SummaryReport

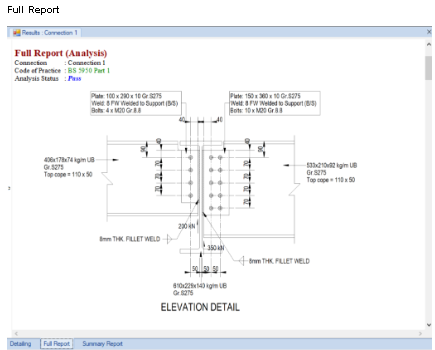

Full Report

FullReport

Features

Esteem SteelCAD Features

  • 11 types of connection which include Simple & Moment connections, and Splices.
  • BS5950 code of practice design.
  • Analysis, Design and Auto-Detailing.
  • Export Detailing to DXF or DWG format.
  • Design Calculation Report.
  • Export design calculation report as RTF format which can be open in Microsoft Word.
  • Compatible to install on Windows 7 SP 1, Windows 8, Windows 10 64 bit OS.

Release of
SteelCAD 1.0

Download
pdf SteelCAD 1.0 Brochure (2.00 MB)
